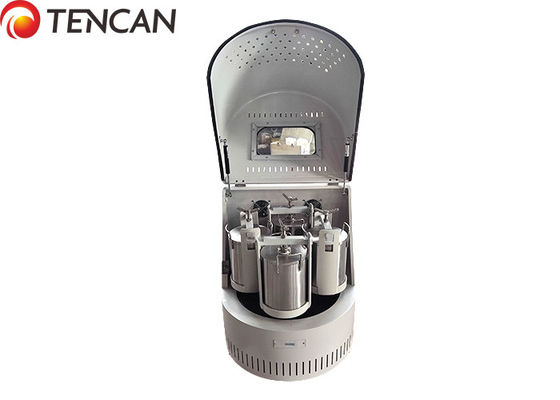

Tencan XQM-6A 6L Semi-Round Vertical Planetary Ball Mill 220V for Lab Powder Grinding
Productdetails:
| Plaats van herkomst: | Hunan, China |
| Merknaam: | TENCAN |
| Certificering: | CE ISO |
| Modelnummer: | XQM-6A |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 INSTELLEN |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | doos+schuim |
| Levertijd: | 3-7 werkdagen |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 200 sets per maand |
|
Gedetailleerde informatie |
|||
| Productnaam: | Semi-cirkel rond laboratoriumbalfabriek | Modelnr.: | XQM-6A |
|---|---|---|---|
| Totaal volume: | 6l | Maximale capaciteit: | 1.98L |
| Roteer snelheid: | 70-670 tpm | Snelheidscontrole: | Frequentiecontrole |
| Spanning: | 110V-60Hz of 220V-50Hz | Stroom: | 0,75 kW |
| Markeren: | 6L semi-round planetary ball mill,lab powder grinding ball mill,220V vertical ball mill |
||
Productomschrijving
TENCAN 6L Semi Round Vertical Planetary Ball Mill (220V) – Precision Grinding for Advanced Materials
Product Overview
The TENCAN 6L Semi-Circle Round Vertical Laboratory Ball Mill is designed for ultra-fine grinding, mechanical alloying, and nanopowder synthesis. Its compact, high-efficiency design makes it ideal for R&D labs, universities, and industrial research. The system supports multi-sample processing, low-noise operation (<60 dB), and repeatable results for small-batch production of advanced materials.
Working Principle
The mill consists of four grinding jars mounted on a rotating turntable. High-speed rotation induces planetary motion, where the grinding media (balls) impact and shear the material. This generates uniform particle reduction through:
Strong centrifugal forces
Multi-directional collisions
Efficient friction and shear
Output parameters such as speed, time, and rotation mode can be adjusted to ensure consistent, high-quality powders for research and production.
Applications
1. Advanced Materials & Electronics
Battery Materials: NCM, LFP, silicon-based anodes
Ceramics: MLCC dielectrics, piezoelectric ceramics, alumina/zirconia powders
Magnetic Alloys: Fe-Si, Nd-Fe-B, soft ferrites
2. Chemicals & Pharmaceuticals
Catalysts, phosphors, drug formulations (dry/wet grinding)
Nanopowders for coatings, composites, and additives
3. Geology & Metallurgy
Mineral sample preparation: ores, rocks, sediments
Mechanical alloying: Al, Ti, Cu-based composites
Technical Advantages
Four-Jar Efficiency: Allows concurrent processing of multiple samples, saving time and energy
High Repeatability: Ensures consistent particle size distribution (PSD) for reliable R&D
Low Maintenance: Durable jars made of ZrO₂, stainless steel, or nylon for extended service life
Compact & Quiet: Oil-sealed gears maintain <60 dB noise, suitable for laboratory environments
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of 6.0L Vertical Semi-circle Round Laboratory Ball Mill | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) | RotationSpeed (rpm) |
| XQM-0.4A | 0.25 | 220V-50Hz 110V-60Hz | 530*300*340 | 45-435 | 90-870 |
| XQM-1A | 0.75 | 220V-50Hz 110V-60Hz | 750*470*590 | 35-335 | 70-670 |
| XQM-2A | 0.75 | 220V-50Hz 110V-60Hz | 750*470*590 | 35-335 | 70-670 |
| XQM-4A | 0.75 | 220V-50Hz 110V-60Hz | 750*470*590 | 35-335 | 70-670 |
| XQM-6A | 0.75 | 220V-50Hz 110V-60Hz | 750*470*590 | 35-335 | 70-670 |
Accessories of Mill Jars & Balls
Available Mill Jars Matching with XQM-4A:
Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
