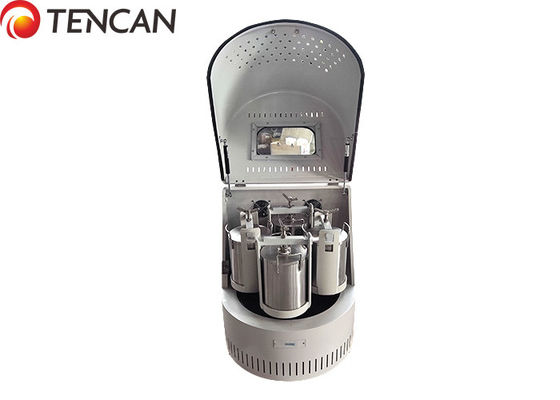

Tencan 10L Vertical Planetary Ball Mill, 220V Lab Grinding for Research and Industry
Productdetails:
| Plaats van herkomst: | Hunan, China |
| Merknaam: | TENCAN |
| Certificering: | ISO CE |
| Modelnummer: | XQM-10 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 INSTELLEN |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | doos+schuim |
| Levertijd: | 3-7 werkdagen na volledige betaling |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 300 sets per maand |
|
Gedetailleerde informatie |
|||
| Poructnaam: | Vierkante vorm verticale laboratoriumbalfabriek | Modelnr.: | XQM-10 |
|---|---|---|---|
| Totaal volume: | 10L | Maximale capaciteit: | 3.3l |
| Roteer snelheid: | 70-580 tpm | Snelheidscontrole: | Frequentiecontrole |
| Spanning: | 220V-50Hz ； 110V-60Hz | Stroom: | 1,5 kW |
| Markeren: | 10L vertical planetary ball mill,220V lab grinding ball mill,industrial laboratory ball mill |
||
Productomschrijving
TENCAN 10L Vertical Planetary Ball Mill – Precision Grinding System (220V)
Product Overview
The TENCAN 10L Vertical Planetary Ball Mill (220V) is a high-performance grinding system designed for micron- and nano-scale particle processing. Engineered for both laboratory research and small-scale industrial production, this CE-certified equipment delivers stable, repeatable, and high-energy milling performance for advanced material development and powder processing applications.
With its vertical planetary structure and intelligent control system, the mill is widely used in materials science, nanotechnology, electronic ceramics, energy materials, and chemical synthesis.
Technical Highlights
Ultra-Fine Grinding Capability
Utilizing advanced planetary motion mechanics, the system generates strong impact and shear forces, enabling particle size reduction down to 0.1 μm or nanometer range, suitable for high-end research and precision material preparation.
High-Throughput Multi-Sample Processing
Equipped with four independent 2.5 L grinding jars, the mill allows simultaneous processing of multiple samples, significantly improving productivity and experimental efficiency.
Multi-Mode Milling Operation
Supports dry grinding, wet milling, and vacuum or inert atmosphere processing. Specialized jars are available for oxygen- or moisture-sensitive materials.
Intelligent Control & Safety System
Features a variable frequency drive, programmable operation cycles, automatic reverse rotation, and safety interlock protection to ensure precise control and safe operation.
Robust & Low-Noise Design
Compact mechanical structure with low operating noise, suitable for continuous operation in laboratory and industrial environments.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of Vertical Planetary Mill Ball (SquareType) | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-1 | 0.75 | 220V-50Hz | 750*470*564 | 35-325 | 70-670 |
| XQM-2 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-4 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-6 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-8 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-10 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
Accessories of Grinding Pots & Balls
Available grinding pots in full sizes:
Stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc.
| References for Matchable Jar Sizes with Square Shape Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-2 | 2.0L | 50-500ml | 2pcs or 4pcs | 50-250ml |
| XQM-4 | 4.0L | 250-1000ml | 2pcs or 4pcs | 50-1000ml |
| XQM-6 | 6.0L | 1-1.5L | 2pcs or 4pcs | 50-1000ml |
| XQM-8 | 8.0L | 1-2L | 2pcs or 4pcs | 50-1500ml |
| XQM-10 | 10L | 1-2.5L | 2pcs or 4pcs | 1-2L |
| XQM-12 | 12L | 1-3L | 2pcs or 4pcs | 1-2L |
| XQM-20 | 20L | 2-5L | 2pcs or 4pcs | 2-4L |
| XQM-40 | 40L | 5-10L | 2pcs or 4pcs | 5L |
| XQM-60 | 60L | 10-15L | 2pcs or 4pcs | 10L |
| XQM-100 | 100L | 20-25L | 2pcs or 4pcs | 20L |
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
Available grinding balls in full sizes
Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
