1400°C Laboratory Muffle Furnace for Ashing, Annealing and Material Testing

Productdetails:

Plaats van herkomst: China
Merknaam: TENCAN
Certificering: CE

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1
Levertijd: 7~15
Betalingscondities: L/C, D/A, D/P, T/T, Western Union
Beste prijs Contact

Gedetailleerde informatie
Producttype: Laboratoriumdoosoven Maximale temperatuur: 1400°C
Werktemperatuur: 1300°C Kamervolume: 1L~729L, aanpasbaar
verwarmingselement: Weerstand Draadverwarming Temperatuurregeling: Programmeerbare PID-regeling met 50 segmenten
ovenvoering: Polykristallijne mullietvezel Het koelen ontwerp: Dubbellaagse schaal met ventilatorkoeling
Veiligheid Bescherming: Beveiliging tegen oververhitting Sollicitatie: Sinteren, smelten en materiaalanalyse
Markeren:

1400°C Muffle Furnace

,

Annealing Muffle Furnace

,

Ashing Muffle Furnace

Productomschrijving

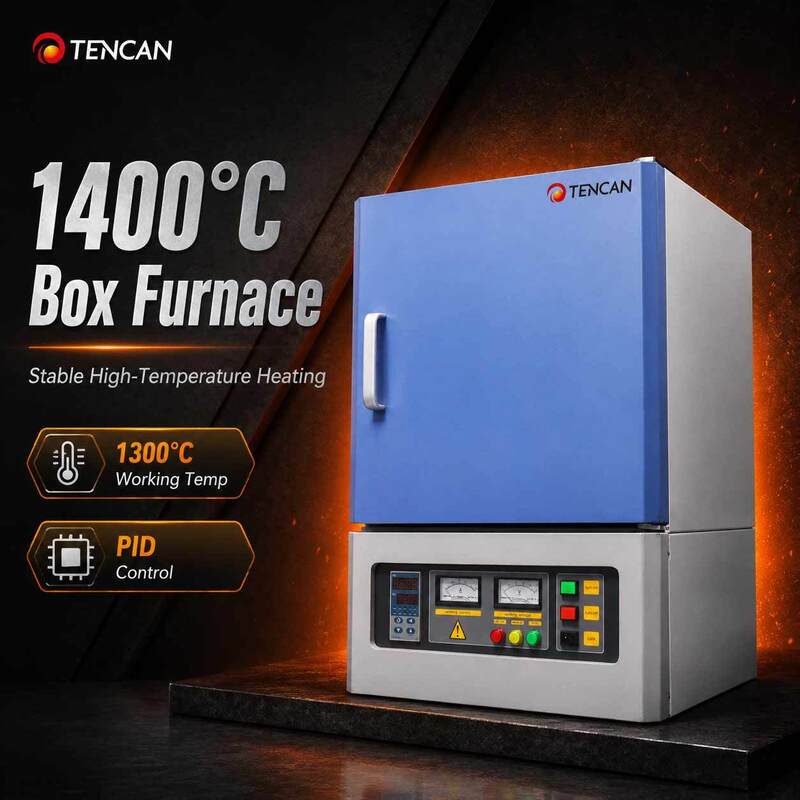

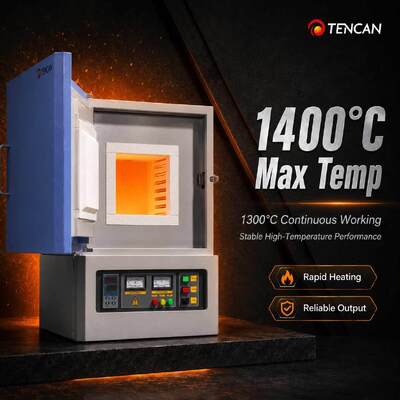

1400°C Laboratory Muffle Furnace

The 1400°C Laboratory Muffle Furnace is designed for high-temperature material testing, ashing, annealing, ceramic firing, sintering, and small-scale heat treatment. As a box-type electric resistance furnace, it provides a closed and stable heating environment, helping samples complete thermal processing with reduced contamination and consistent heating results.

This 1400°C furnace is widely used in universities, research laboratories, testing institutions, ceramic workshops, powder metallurgy facilities, chemical analysis labs, and industrial R&D departments. It is suitable for processing metal materials, ceramic materials, powders, minerals, chemical samples, and various non-metallic or composite materials.

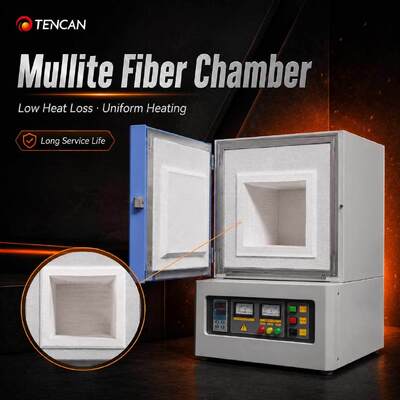

The furnace chamber uses polycrystalline mullite fiber insulation, which provides low heat storage, excellent thermal efficiency, fast heating response, and reduced energy consumption. The reinforced chamber structure improves durability during repeated high-temperature operation and helps maintain long-term furnace stability.

With accurate temperature control, uniform heat distribution, and reliable safety performance, this 1400°C muffle furnace is an ideal solution for laboratories and production sites that require dependable high-temperature processing equipment.

Muffle FurnaceMuffle FurnaceMuffle FurnaceMuffle FurnaceMuffle FurnaceMuffle FurnaceMuffle FurnaceMuffle Furnace

Product Features

  • Maximum temperature range: room temperature to 1800°C.
  • Available chamber capacities from 1 L to 1000 L.
  • Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
  • Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.

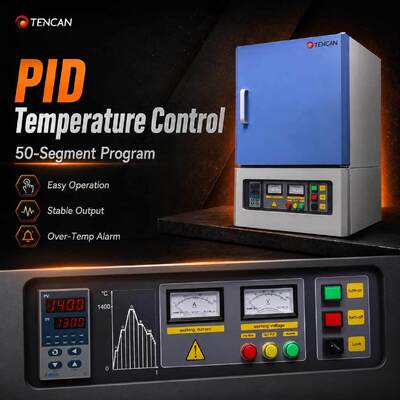

  • Intelligent 50-segment programmable automatic temperature control.
  • Built-in over-temperature alarm for safer operation.
  • Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.

1200°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-12N-1 1200 1100 100×100×100 1 0.8 1 Type K
TC-12N-3 1200 1100 150×150×150 3 2.5 1 Type K
TC-12N-8 1200 1100 200×200×200 8 5 1 Type K
TC-12N-12 1200 1100 200×200×300 12 6 1 Type K
TC-12N-36 1200 1100 300×300×400 36 10 3 Type K
TC-12N-64 1200 1100 400×400×400 64 16 3 Type K
TC-12N-125 1200 1100 500×500×500 125 25 3 Type K
TC-12N-216 1200 1100 600×600×600 216 36 3 Type K
TC-12N-512 1200 1100 800×800×800 512 64 3 Type K
TC-12N-729 1200 1100 900×900×900 729 80 3 Type K

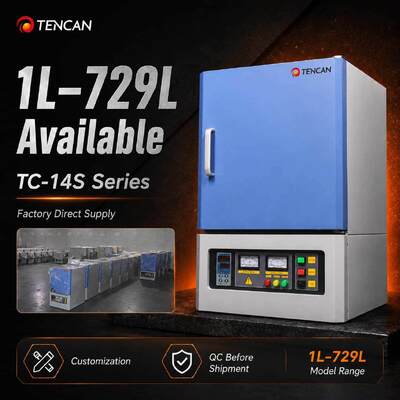

1400°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-14S-1 1400 1300 100×100×100 1 1 1 Type S
TC-14S-3 1400 1300 150×150×150 3 3 1 Type S
TC-14S-8 1400 1300 200×200×200 8 5 1 Type S
TC-14S-12 1400 1300 200×200×300 12 7 1 Type S
TC-14S-36 1400 1300 300×300×400 36 11 3 Type S
TC-14S-64 1400 1300 400×400×400 64 18 3 Type S
TC-14S-125 1400 1300 500×500×500 125 27 3 Type S
TC-14S-216 1400 1300 600×600×600 216 40 3 Type S
TC-14S-512 1400 1300 800×800×800 512 70 3 Type S
TC-14S-729 1400 1300 900×900×900 729 88 3 Type S

1700°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-17M-1 1700 1600 100×100×100 1 1 1 Type B
TC-17M-3 1700 1600 150×150×150 3 4 1 Type B
TC-17M-8 1700 1600 200×200×200 8 7 1 Type B
TC-17M-12 1700 1600 200×200×300 12 8 1 Type B
TC-17M-36 1700 1600 300×300×400 36 12 3 Type B
TC-17M-64 1700 1600 400×400×400 64 20 3 Type B
TC-17M-125 1700 1600 500×500×500 125 30 3 Type B
TC-17M-216 1700 1600 600×600×600 216 45 3 Type B
TC-17M-512 1700 1600 800×800×800 512 80 3 Type B
TC-17M-729 1700 1600 900×900×900 729 96 3 Type B

1800°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-18HM-1 1800 1700 100×100×100 1 2 1 Type B
TC-18HM-3 1800 1700 150×150×150 3 6 1 Type B
TC-18HM-8 1800 1700 200×200×200 8 8 1 Type B
TC-18HM-12 1800 1700 200×200×300 12 9 1 Type B
TC-18HM-36 1800 1700 300×300×400 36 15 3 Type B
TC-18HM-64 1800 1700 400×400×400 64 25 3 Type B
TC-18HM-125 1800 1700 500×500×500 125 35 3 Type B
TC-18HM-216 1800 1700 600×600×600 216 50 3 Type B

Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.


Related Accessories

Standard Accessories

  • Furnace door insulation brick
  • High-temperature gloves
  • Crucible tongs
  • User manual
  • Spare heating elements for 1400°C and 1700°C models

Optional Accessories

  • HD touchscreen controller
  • Exhaust port
  • Observation window
  • Multi-layer kiln furniture
  • Alumina crucible
  • Communication software
