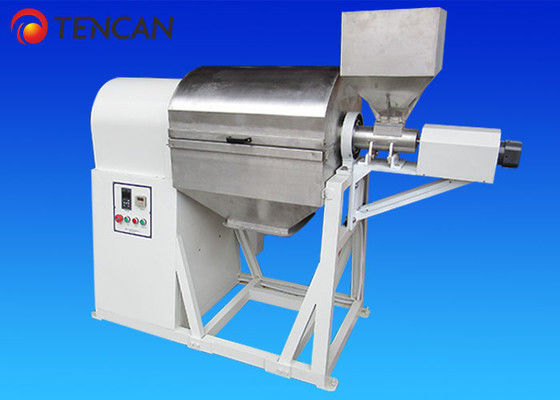

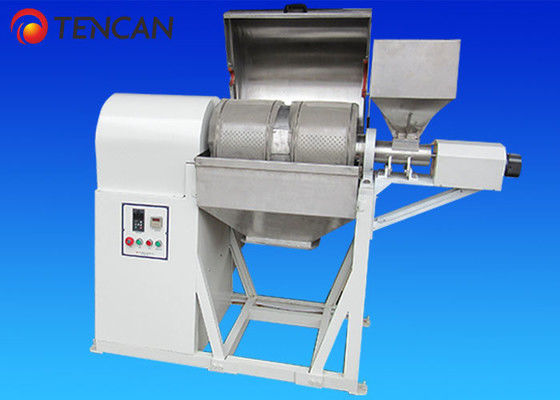

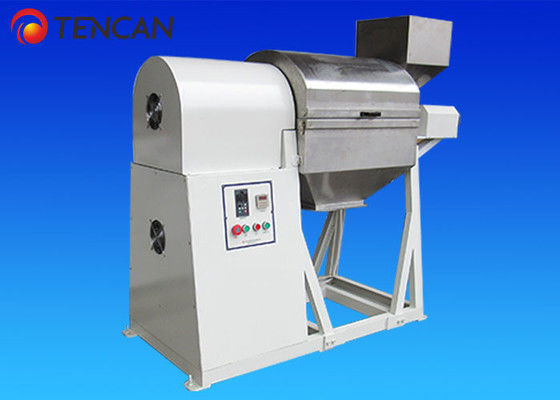

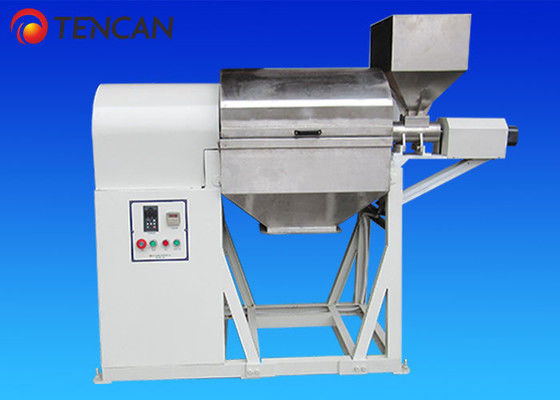

Rolling Ball Mill with 300 Mesh Output Size Supporting Lab Testing and Wet Grinding Applications Effectively

Rolling Ball Mill with 300 Mesh Output Size Supporting Lab Testing and Wet Grinding Applications Effectively

Productdetails:

Plaats van herkomst: Hunan, China
Merknaam: TENCAN
Certificering: ISO CE
Modelnummer: Qm-30

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1 set
Prijs: Onderhandelbaar
Verpakking Details: Triplexgeval met schuim
Levertijd: 10-15 dagen
Betalingscondities: T/T,L/C
Levering vermogen: 150 Reeks/Reeksen per Maand
Beste prijs Contact

Gedetailleerde informatie
Voedingsgrootte (mm): 0.1 - 10 mm Stroom: 0,75 kW
Productnaam: rollende kogelmolen Functie: Zonder een hoesje (goedkoper)
Uitvoer (kg/h): 5 - 10,5 kg/uur Garantie: 1 jaar
Roteer de snelheid: 20-60 tpm Uitgangsgrootte (gaas): ≥ 300 mesjes
Markeren:

Rolling Ball Mill with 300 mesh output

,

Lab testing Rolling Ball Mill

,

Wet grinding Rolling Ball Mill

Productomschrijving

Rolling Ball Mill with 300 Mesh Output Size Supporting Lab Testing and Wet Grinding Applications Effectively

Product Description

Overview

The light roll ball mill is a versatile benchtop unit designed for ultra-fine grinding and mixing applications in laboratory research and small-scale production. Also referred to as a rolling machine altar, this equipment is highly regarded for its streamlined design, compact footprint, user-friendly operation, high processing efficiency, and uniform fineness control. It is extensively utilized across various sectors including electronic materials, magnetic materials, biomedical research, ceramic glazes, metal powders, non-metallic minerals, and advanced materials development.

Engineered with an optimized rotational speed, the mill jar is driven by a precision rubber roller. This motion induces a cascading flow of grinding balls inside the jar, effectively dispersing and processing materials to achieve optimal grinding performance. The system can reduce materials to micron-scale powders and incorporates an intelligent timing control panel with pause and cumulative timing functions. This enables users to precisely program processing durations according to specific requirements, significantly improving operational efficiency and saving labor.

Working Principle

During operation, the grinding media and raw materials inside the tank are elevated to a certain height before cascading down along the inner wall. This continuous movement generates intensive impact, friction, and shearing forces that effectively pulverize and blend the materials. Furthermore, the mill is equipped with a magnetic lining board constructed from specialized magnetic materials, forming a curved open magnetic system. This innovative design utilizes strong magnetic forces to secure broken grinding balls and magnetic mineral particles to the liner surface, thereby enhancing overall grinding efficiency and protecting the grinding chamber.

Rolling Ball Mill with 300 Mesh Output Size Supporting Lab Testing and Wet Grinding Applications Effectively 0

Features

  1. Reliable Operation with High Efficiency and Low Noise
    The equipment ensures extremely stable performance while delivering outstanding grinding efficiency. Its low-noise operation complies with modern environmental standards, making it an ideal choice for diverse industrial applications.

  2. Adaptable to Various Hard Materials and Processes
    Capable of processing a wide range of hard materials through both dry and wet grinding methods, the machine supports multiple operational modes—from coarse crushing to fine grinding and homogeneous mixing—offering exceptional versatility.

  3. User-Oriented Design for Safety and Convenience
    Fitted with an automatic unloading mechanism, the unit enables quick separation of grinding media and processed powder for efficient material collection. A fully enclosed protective cover is included to ensure operational safety while maintaining high purity and cleanliness.

  4. Robust Construction for Long-Term Grinding Performance
    Designed with wear-resistant components, the machine guarantees lasting durability and consistent grinding efficiency, providing reliable service over extended periods without compromising on fineness or stability.

  5. Customizable Grinding Jars for Specific Requirements
    A selection of liner jars is available, including alloy steel, stainless steel, wear-resistant polyurethane, corundum ceramics, and zirconia, with volumes ranging from 20L to 2000L. Users can select the most appropriate configuration based on material characteristics and processing needs.



Technical Parameters:

Product Name Rolling Ball Mill
Key Word Laboratory Scale Roll Jar Mill
Feature Without Cover (cheaper)
Application More Suitable For Wet Grinding
Output 5 - 10.5Kg/h
Rotate Speed 20-60rpm
Weight 32kg
Feeding Size 0.1 - 10mm
Power 0.75KW
Voltage 220V or 110V


Applications:

Product Description

Brand Name: TENCAN
Model Number: QM-30
Place of Origin: Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood Case with Foam
Delivery Time: 10-15 days
Payment Terms: T/T, L/C
Supply Ability: 150 Set/Sets per Month

Application

The Rolling Ball Mill is a laboratory-scale roll jar mill specifically optimized for wet grinding processes. It is engineered to reduce various materials to ultra-fine powders, meeting the demands of research, development, and small-batch production applications.

Product Features

This circular ball mill operates through axial rotation, enabling efficient and homogeneous grinding of materials. It is powered by a robust motor and features durable rollers designed for extended operational life. With its space-saving design, the unit offers both user-friendly operation and convenient storage capabilities.

Product Nomenclature

The equipment is officially designated as the Rolling Ball Mill, though it is alternatively described as a Rotating Ball Mill in reference to its distinct circular motion.

Technical Keywords

Commonly identified as a Rolled Ball Mill or Circular Ball Mill due to its operational mechanism and structural configuration, this apparatus serves as a versatile and high-efficiency solution for material processing in laboratory environments.

Usage Scope

The Rolling Ball Mill finds application across multiple sectors including pharmaceutical manufacturing, chemical processing, ceramics production, and mineral processing for material grinding and blending operations. It additionally supports research laboratories in new material experimentation and product development initiatives.

Performance Advantages

The Rolling Ball Mill delivers multiple operational benefits:

  • Specialized optimization for wet grinding applications

  • Capability to generate superfine powder outputs

  • Consistent and uniform grinding performance

  • Space-efficient configuration for easy operation and storage

  • Reliable motor and reinforced rollers supporting continuous operation

  • Broad compatibility with diverse material types

  • Cost-efficient open-structure design

Production Capacity

With an output range of 5-10.5 kg/h, the equipment is ideally suited for research activities and limited production requirements.

Summary

TENCAN's Rolling Ball Mill represents an effective and adaptable solution for laboratory material processing. Combining compact engineering, dependable power transmission, and multi-material compatibility, it serves as an invaluable asset for both research institutions and industrial production facilities.

FAQ:

1. Are you manufacturer or trade company?
We are one of leading manufacturers in China, which focuses on designing, manufacturing and selling all kinds of powder grinding equipment including planetary ball mills, roll ball mills, stir ball mills, crushers, mixers and sieve shakers as well as accessories matched with machines.
2. What is your delivery time if I place an order?
We often have a great deal of regular machine models and accessories in stock available. If you want to order our regular items, it takes about 1-3 working days to finish packing and inspection, Generally speaking we can make shipment of regular order from our warehouse within 3-7 working days after payment is received.
3. What questions about requirements are required to provide to us if you inquiry about ball mills?
Answers:
* What material is needed to be grind? By wet or dry method?
* How many liters of material are required to be ground per batch?
* What is feed size (mm) of starting materials?
* What final particle size (μm or nm or meshes) is required by grinding?
* Is material allowed with metal impurity contamination while grinding?

4. Can you provide testing service of grinding experiment before we place an order?
Yes. sample grinding experiment is available for any customer who is willing to send materials to us, and grinding experiment of sample is always free of charge.
Delivery address of material sample:
Changsha Tianchuang Powder Technology Co., Ltd
Room 804, 2nd Building, No.68 Luositang Road, Changsha Economic and Technological Development Zone, Changsha, Hunan, China 410100
Contact Name: Aivin Ai Mobile Phone: +86 13548659522
5. What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you can send Email to: service@lab-mills.com for after-sale services.
6. What is MOQ (Minimum Order Quantity) of one order?
One set of machine or one piece of accessories (like ball mill jar and balls) are acceptable.
