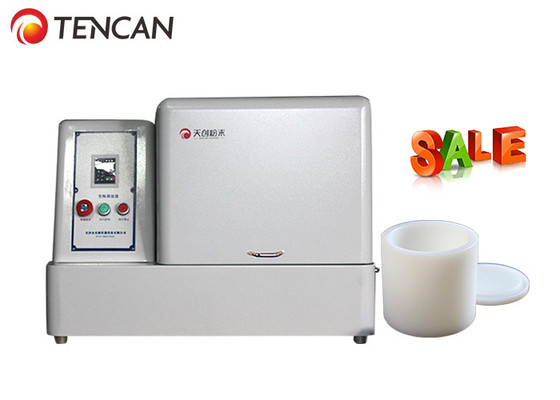

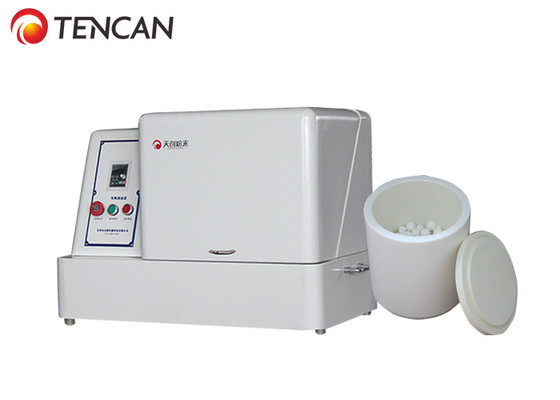

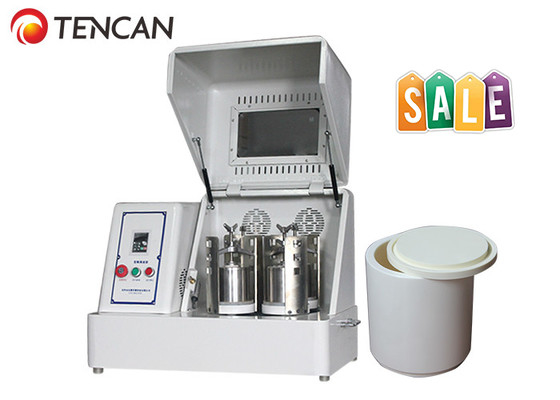

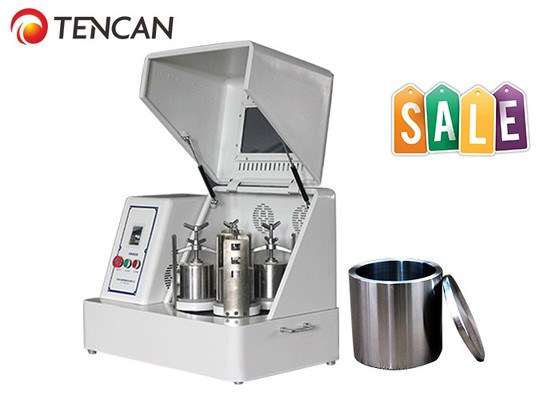

TENCAN 8L Food-Grade Planetary Ball Mill - High-Efficiency Tea Powder Grinding System with 4×2000ml Stainless Steel Jars, Lab/Industrial Use
Productdetails:
| Plaats van herkomst: | Hunan, China |
| Merknaam: | TENCAN |
| Certificering: | CE ISO |
| Modelnummer: | Xqm-8 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Eén set |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | KARTON OF TRIPLEX GEVAL |
| Levertijd: | 3-7 werkdagen na ontvangst van de volledige betaling |
| Betalingscondities: | T/T, Western Union, L/C, MoneyGram, |
| Levering vermogen: | 200 stuks per maand |
|
Gedetailleerde informatie |
|||
| Naam van het product: | Molen van de laboratorium de vierkante Planetarische Bal | Model nr.: | Xqm-8 |
|---|---|---|---|
| Spanning: | 220V-50Hz of 110V-60Hz | Kracht: | 1.5 kW |
| Rotatiesnelheid: | 70-580 t/min | Snelheidscontrole: | Frequentieregeling |
| Totaal volume: | 8L | Maximale capaciteit: | 2.7L |
| Markeren: | 4×2000ml Planetary Ball Mill,High-Efficiency Planetary Ball Mill,Lab/Industrial Planetary Ball Mill |
||
Productomschrijving
TENCAN 8L Food-Grade Planetary Ball Mill - High-Efficiency Tea Powder Grinding System with 4×2000ml Stainless Steel Jars, Lab/Industrial Use
Product Description:
The TENCAN 8L Planetary Ball Mill is a specialized food-processing system designed for premium tea powder production. Featuring four 2000ml food-safe nylon jars with zirconia balls, this advanced mill efficiently processes 500g batches of 1mm tea leaves into ultra-fine powder (<50μm) in just one hour while preserving natural flavors and active compounds.
Key Performance Features:
Food-grade nylon grinding jars & zirconia balls prevent contamination
Processes tea leaves to <50μm with 100% yield
Optimized 500rpm operation with auto-reverse function
Maintains temperature-sensitive tea properties
Compact design with <65dB noise level
Technical Specifications:
Model: XQM-8 Vertical Planetary Ball Mill
Capacity: 4×2000ml jars
Processing Time: 60 minutes
Power: 2.2kW
Safety: Emergency stop & overload protection
Ideal Applications:
Matcha-grade tea powder production
Functional tea ingredient preparation
Beverage industry R&D
Nutraceutical applications
Food flavor enhancement studies
Processing Note:
Requires complete material drying before grinding for optimal results
This system combines large-scale processing capacity with laboratory precision, making it perfect for both tea research institutions and commercial producers seeking consistent, high-quality tea powder production while maintaining all bioactive properties.
⇒
Before Grinding After Grinding
2.Solution:
1) Equipment Selection: Vertical Planetary Ball Mill Model XQM-4.
2) Accessories: Nylon Pots and Zirconia Balls.
3) Running Parameter Setting: Rotation Speed: 500rpm, Positive and Negative Reciprocal Operation after 30-minute running.
4) Grinding Time: One Hours
5) Grinding Result: 100%＜50μm
6) Note: Material has to be dried completely before grinding
6) Conclusion: Planetary Ball Mill Model XQM-8 can be used to grind green tea.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | < 10mm for soft material; < 3mm for hard material |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 hours |
| Materials of Jar | stainless steel,agate,nylon,corundum,zirconia, PU, PTFE etc |
Technical Parameters
| Main Parameters of 8L 110 / 220v Planetary Ball Mill - Square design | |||||
| Model | Power(kW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| XQM-8 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-10 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-12 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References for Matchable Jar Sizes with Squre type Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-1 | 1.0L | 50ml, 100ml, 250ml | 2pcs or 4pcs | 50ml, 100ml |
| XQM-2 | 2.0L | 250ml, 500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml |
| XQM-4 | 4.0L | 250ml, 500ml,1000ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml |
| XQM-6 | 6.0L | 500ml, 1000ml, 1500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L |
| XQM-8 | 8.0L | 1L, 2L | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L, 1.5L |
| XQM-10 | 10.0L | 1L, 2L, 2.5L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-12 | 12.0L | 1L, 2L, 2.5L, 3L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-16 | 16.0L | 2L, 3L, 4L | 2pcs or 4pcs | 1L, 1.5L, 2L, 3L |
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Ultra wear-resistant, free of any impurities, corrosion-resistant, and heat-resistant. |
| Stainless Steel Balls | ≥6.0 | Wear resistant, generally corrosion-resistant, and high temperature resistant. |
| Agate Balls | ≥7.0 | Ultra wear-resistant, used for materials such as medicine and food that are not contaminated by metals, corrosion-resistant, and heat-resistant. |
| Alumina Balls | ≥8.5 | Wear resistant, generally corrosion-resistant, and high temperature resistant. |
| Tungsten Carbide Balls | ≥9.0 | Ultra wear-resistant, free of any impurities, corrosion-resistant, and heat-resistant. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
